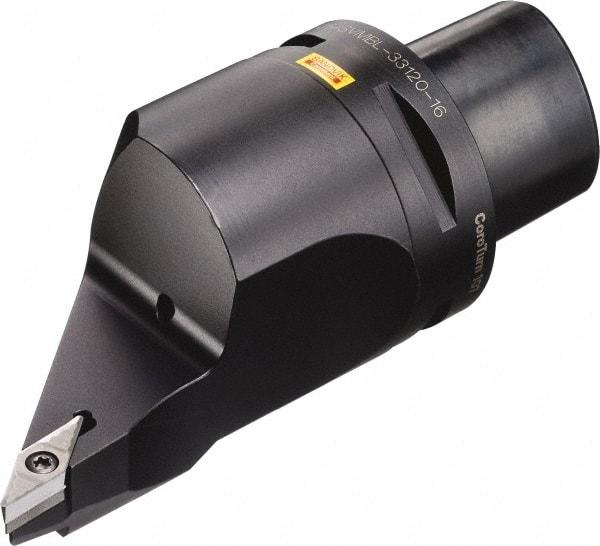

Sandvik Coromant - Right Hand Cut, Size C6, VBMT 16 04 08 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 32.9mm Ctr to Cutting Edge, Through Coolant, Series CoroTurn 107
Item #: 30889075
Brand: Sandvik Coromant
Model #: 7431276
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Insert Style | VBMT 16 04 08 |
| Center to Cutting Edge (mm) | 32.90 |
| Center to Cutting Edge (Decimal Inch) | 1.2953 |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 120.00 |
| Maximum Hole Depth (Decimal Inch) | 4.7244 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Complete Insert Compatibility | VBMT 16 04 08 |
