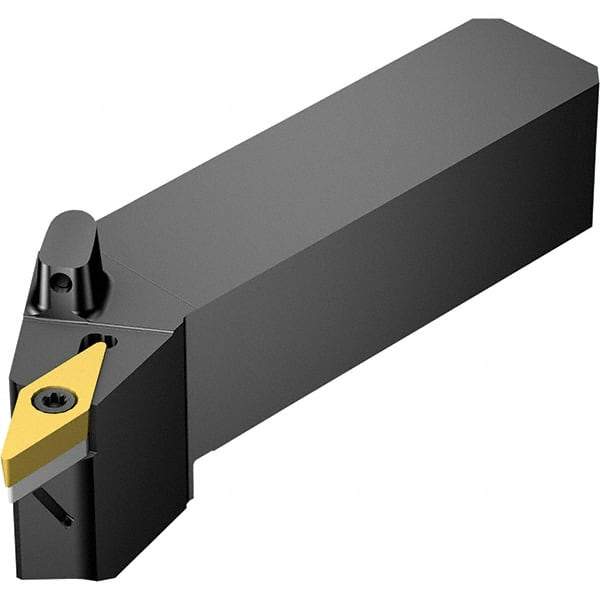

Sandvik Coromant - Left Hand Cut, -3° Lead Angle, 20mm Shank Height x 20mm Shank Width, Neutral Rake Indexable Turning Toolholder - VBMT 16 04 08 Insert Compatibility, Series CoroTurn 107
Item #: 30888192
Brand: Sandvik Coromant
Model #: 7446546
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | -3 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Insert Compatibility | VBMT 16 04 08 |
| Back of Bar to Cutting Edge (mm) | 108.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.2520 |
| Center to Cutting Edge (Decimal Inch) | 0.9843 |
| Head Length (mm) | 59.00 |
| Head Length (Decimal Inch) | 2.3228 |
| Toolholder Material | Steel |
