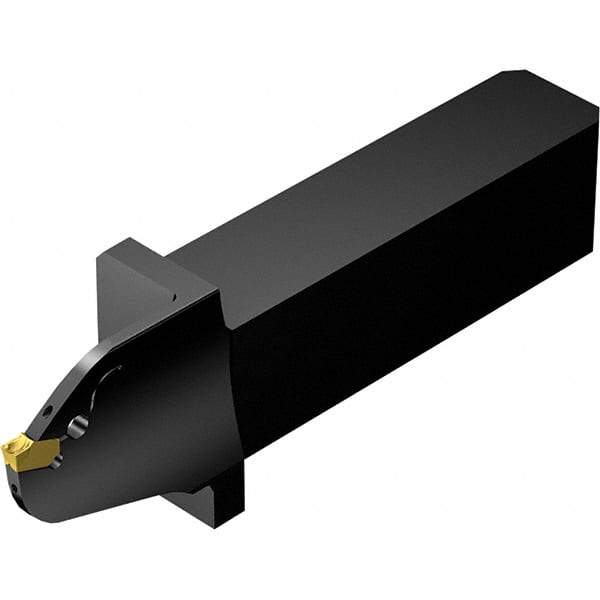

Sandvik Coromant - Right Hand, 38mm Max Depth of Cut, Indexable Grooving Tool Holder - 25mm Shank Height, 25mm Shank Width, Through Coolant
Item #: 30855142
Brand: Sandvik Coromant
Model #: 7192411
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.4961 |
| Maximum Depth of Cut (mm) | 38.00 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | Coolant Through |
| Coolant Hole Diameter (Inch) | 1/8 |
| Maximum Hole Depth (Decimal Inch) | 1.8740 |
| Maximum Bore Depth (Decimal Inch) | 1.8740 |
| Back of Bar to Cutting Edge (mm) | 131.60 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.1811 |
| Center to Cutting Edge (mm) | 25.50 |
| Center to Cutting Edge (Decimal Inch) | 1.0039 |
| Head Height (Decimal Inch) | 0.9843 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 47.60 |
| Head Length (Decimal Inch) | 1.8740 |
