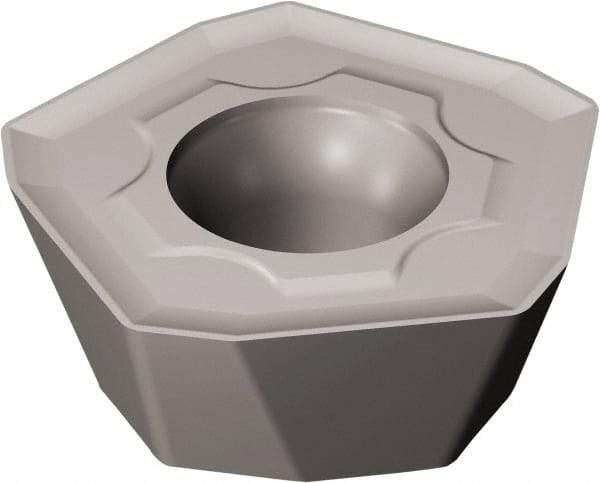

Sandvik Coromant - 419R1405 MM Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 5.47mm Thick, 13.5mm Inscribed Circle, 0.8mm Corner Radius
Item #: 30848147
Brand: Sandvik Coromant
Model #: 7101001
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 419R |
| Insert Size | 1405 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 13.50 |
| Thickness (mm) | 5.47 |
| Thickness (Decimal Inch) | 0.2154 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Coating Process | PVD |
| Shape | Pentagon |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Manufacturers Catalog Number | 419R-1405E-MM 1130 |
