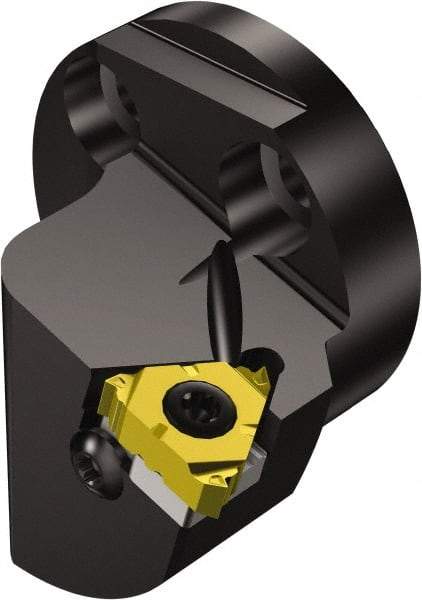

Sandvik Coromant - Insert Style R/L566.0KFC, 20mm Head Length, Right Hand Cut, External Modular Threading Cutting Unit Head - System Size 20, 14mm Center to Cutting Edge, Series T-Max U-Lock
Item #: 30779672
Brand: Sandvik Coromant
Model #: 5747089
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 20 |
| Series Name | T-Max U-Lock |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 14.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5512 |
| Head Length/Projection (mm) | 20.00 |
| Head Length/Projection (Decimal Inch) | 0.7874 |
| Insert Style | R/L566.0KFC |
| Toolholder Material | Steel |
| Minimum Hole Diameter (mm) | 25.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.9843 |
| Radial Rake Angle | -15 |
