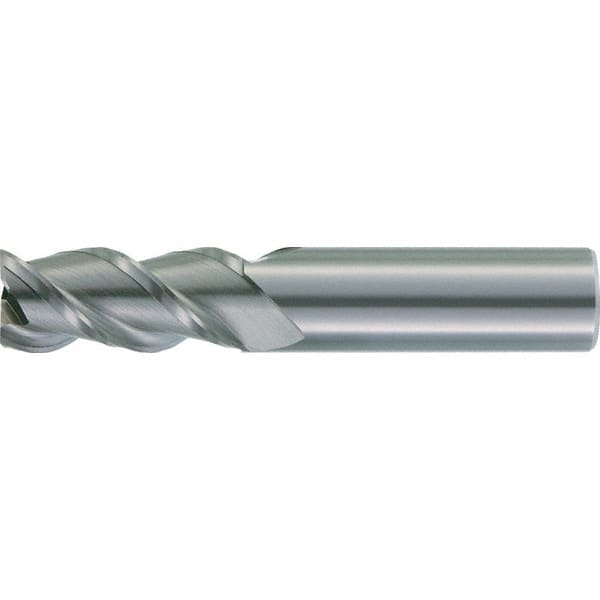

Kennametal - 7/16", 3 Flute, Single End, Solid Carbide, Corner Radius End Mill - 2-1/2" OAL, 35° Helix, Right Hand Flute, 9/16" LOC, Right Hand Cut, 14.29mm Extended Reach
Item #: 30770945
Brand: Kennametal
Model #: 5059202
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Mill Diameter (Inch) | 7/16 |
| Mill Diameter (Decimal Inch) | 0.4375 |
| End Type | Corner Radius |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 9/16 |
| Length of Cut (Decimal Inch) | 0.5625 |
| Shank Diameter (Inch) | 7/16 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 35.00 |
| Reach Length (mm) | 14.29 |
| Reach Length (Decimal Inch) | 0.5625 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Length Type | Regular |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Series/List | AADE |
