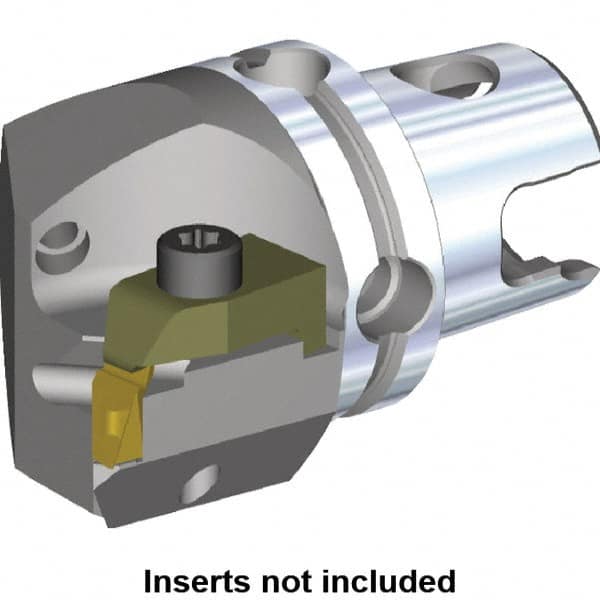

Kennametal - NU3R Insert, 45mm Head Length, Modular Grooving Cutting Unit Head - Left Hand Cut, System Size KM40, Through Coolant, Series Top Notch
Item #: 30749311
Brand: Kennametal
Model #: 3902288
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40 |
| Series Name | Top Notch |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Insert Style | NU3R |
| Head Length/Projection (mm) | 45.00 |
| Head Length/Projection (Decimal Inch) | 1.7717 |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Minimum Hole Diameter (mm) | 54.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.1260 |
| Complete Insert Compatibility | NU3R |
