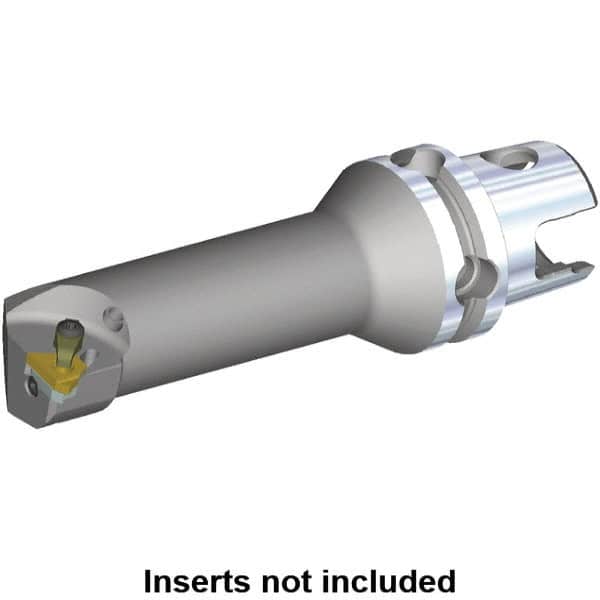

Kennametal - Insert Style LT 22NR, 140mm Head Length, Right Hand Cut, Internal Modular Threading Cutting Unit Head - System Size KM50TS, 27mm Center to Cutting Edge, Series LT Threading
Item #: 30747992
Brand: Kennametal
Model #: 3838711
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50TS |
| Series Name | LT Threading |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Head Length/Projection (mm) | 140.00 |
| Head Length/Projection (Decimal Inch) | 5.5118 |
| Insert Style | LT 22NR |
| Insert Holding Method | Clamp |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Maximum Hole Depth (mm) | 120.00 |
| Maximum Hole Depth (Decimal Inch) | 4.7244 |
