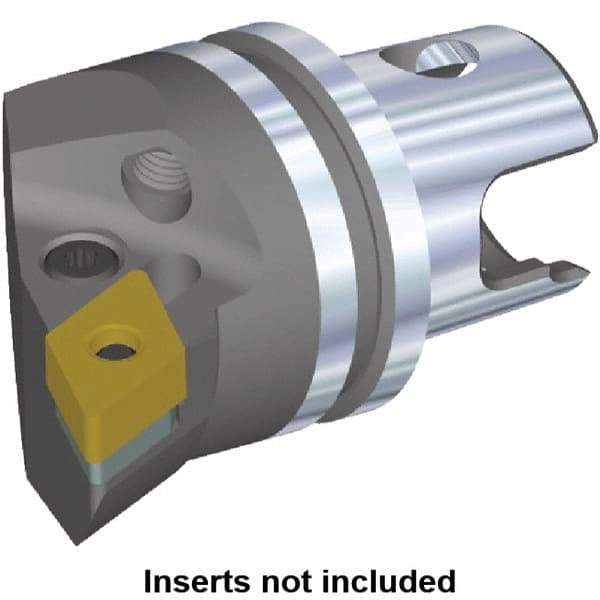

Kennametal - Left Hand Cut, Size KM50, DN.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 50mm Head Length, Through Coolant, Series Kenlever
Item #: 30746416
Brand: Kennametal
Model #: 3741395
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM50 |
| Series Name | Kenlever |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 50.00 |
| Head Length/Projection (Decimal Inch) | 1.9685 |
| Insert Style | DN.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Lever Lock |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 63.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.4803 |
| Complete Insert Compatibility | DN..332; DN..110408 |
