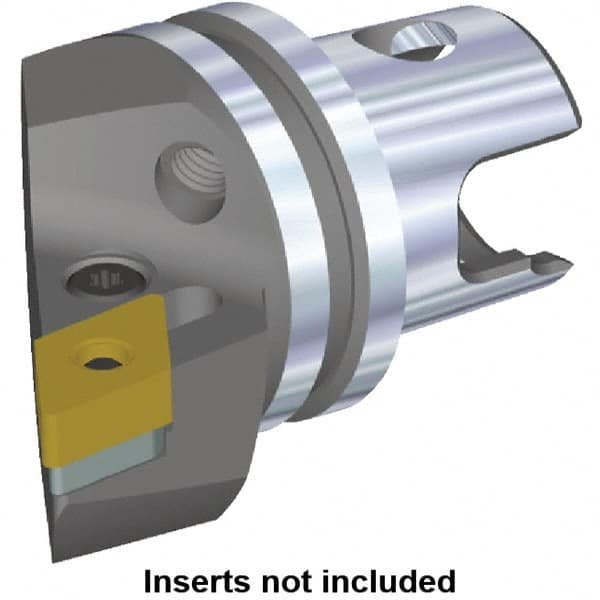

Kennametal - Left Hand Cut, Size KM32, DN.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 35mm Head Length, Through Coolant, Series Kenlever
Item #: 30742274
Brand: Kennametal
Model #: 1232378
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM32 |
| Series Name | Kenlever |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 35.00 |
| Head Length/Projection (Decimal Inch) | 1.3780 |
| Insert Style | DN.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Lever Lock |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 74.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.9134 |
| Complete Insert Compatibility | DN..332; DN..110408 |
