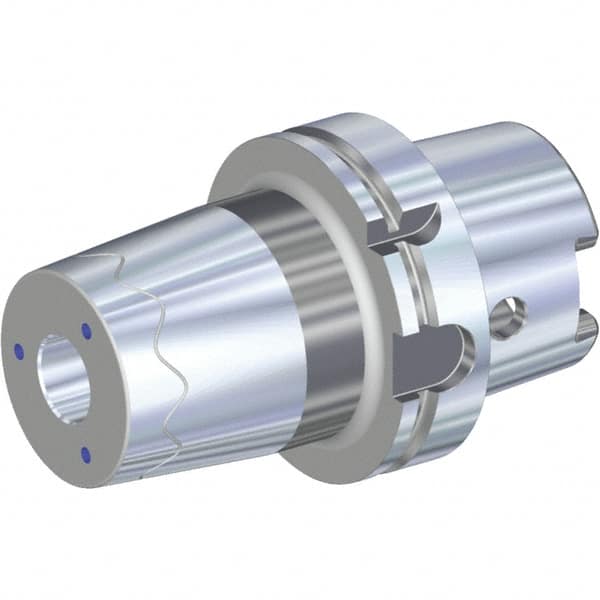

Kennametal - 25mm Hole Diam, HSK100A Taper Shank Shrink Fit Tool Holder & Adapter - 110mm Projection, 63mm Nose Diam, 48mm Clamping Depth, 25,000 RPM, Through Coolant
Item #: 30741557
Brand: Kennametal
Model #: 5090214
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK100A |
| Hole Diameter (Decimal Inch) | 0.9843 |
| Hole Diameter (mm) | 25.00 |
| Projection (mm) | 110.00 |
| Projection (Decimal Inch) | 4.3307 |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4803 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 48.00 |
| Clamping Depth (Decimal Inch) | 1.8898 |
| Balanced to (RPM) | 25000 |
