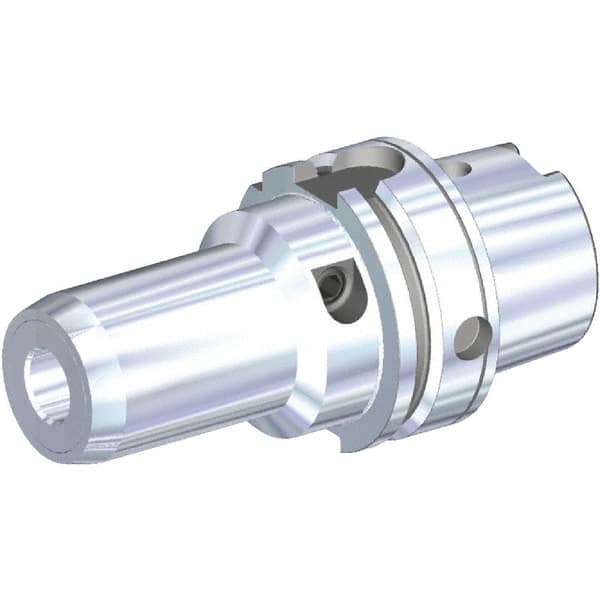

Kennametal - HSK63A Taper Shank, 25mm Hole Diam, Hydraulic Tool Holder/Chuck - 49.8mm Nose Diam, 120mm Projection, 47mm Clamp Depth, 25,000 RPM, Through Coolant
Item #: 30740666
Brand: Kennametal
Model #: 5006419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.9843 |
| Hole Diameter (mm) | 25.00 |
| Nose Diameter (Decimal Inch) | 1.9606 |
| Nose Diameter (mm) | 49.80 |
| Projection (Decimal Inch) | 4.7244 |
| Projection (mm) | 120.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 47.00 |
| Clamping Depth (Decimal Inch) | 1.8504 |
| Balanced to (RPM) | 25000 |
