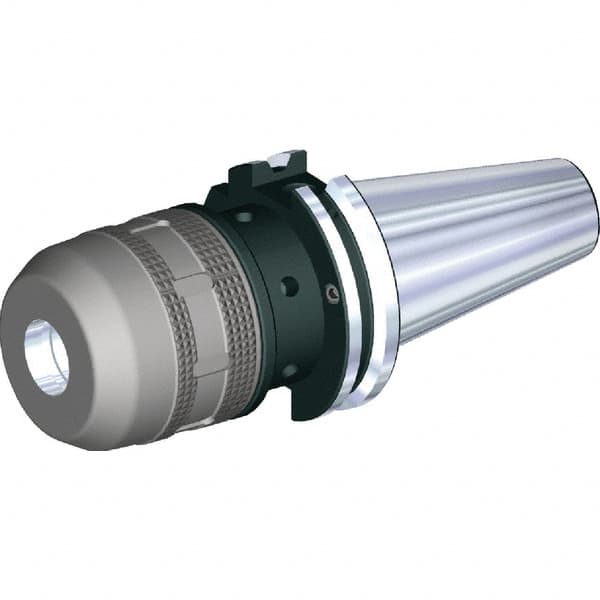

Kennametal - DIN69871-50 Taper Shank, 32mm Hole Diam x 2.9134" Nose Diam Milling Chuck - 6-1/2" Projection, 0.0001" TIR, Through-Spindle & DIN Flange Coolant, Balanced to 20,000 RPM
Item #: 30733653
Brand: Kennametal
Model #: 3523095
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Taper Size | DIN69871-50 |
| Shank Type | Taper Shank |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Nose Diameter (mm) | 74.00 |
| Nose Diameter (Decimal Inch) | 2.9134 |
| Projection (mm) | 165.00 |
| Projection (Decimal Inch) | 6.4961 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 2.9528 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0001 |
| Coolant Type | Through-Spindle & DIN Flange |
