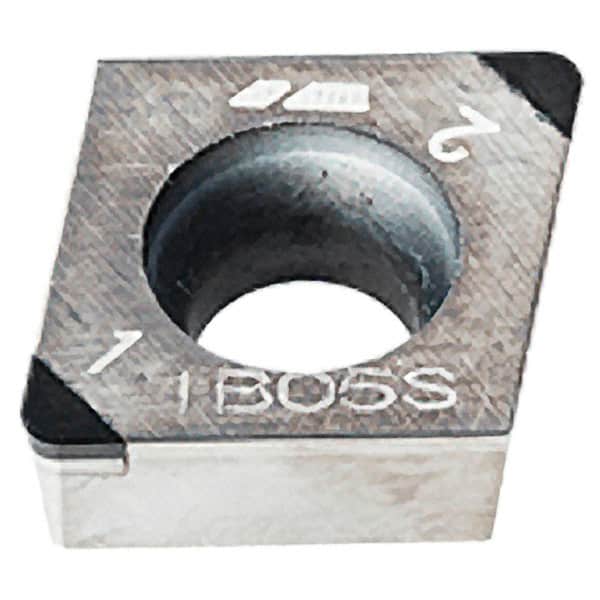

Iscar - CCMW2-0 M2 Grade IB10H CBN Turning Insert - Uncoated, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.008" Corner Radius
Item #: 30732317
Brand: Iscar
Model #: 6820937
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CCMW |
| Insert Size | 2-0 |
| Material | CBN |
| Length (mm) | 6.30 |
| Length (Decimal Inch) | 0.2480 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IB10H |
| Coating | Uncoated |
| Material Grade | Fine Grain |
| Chip Breaker | M2 |
| Insert Length (Decimal Inch) | 0.2480 |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | CCMW 2-0-M2 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 0.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Insert Holding Method | Screw |
| FullRadius | No |
| Multi Use Application | Boring, Chamfering |
| MultiUseTool | Yes |
| Shape | Diamond |
