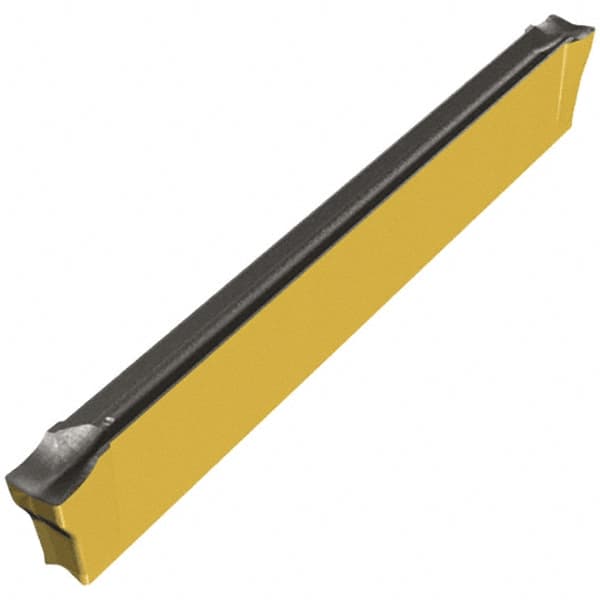

Iscar - DGN2002 XL IC830 Grade, 0.081" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.008" Cnr Rad, AlTiN/TiN Coated, Double End
Item #: 30731574
Brand: Iscar
Model #: 6004646
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | DGN |
| Insert Size | 2002 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 2.06 |
| Cutting Width (Decimal Inch) | 0.0810 |
| Manufacturer's Grade | IC830 |
| Coating | AlTiN/TiN |
| Series | Do-Grip |
| Relief Angle | 7 |
| Chipbreaker | XL |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting |
| Coating Process | PVD |
| Overall Length (mm) | 32.00 |
| Overall Length (Decimal Inch) | 1.2600 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.20 |
