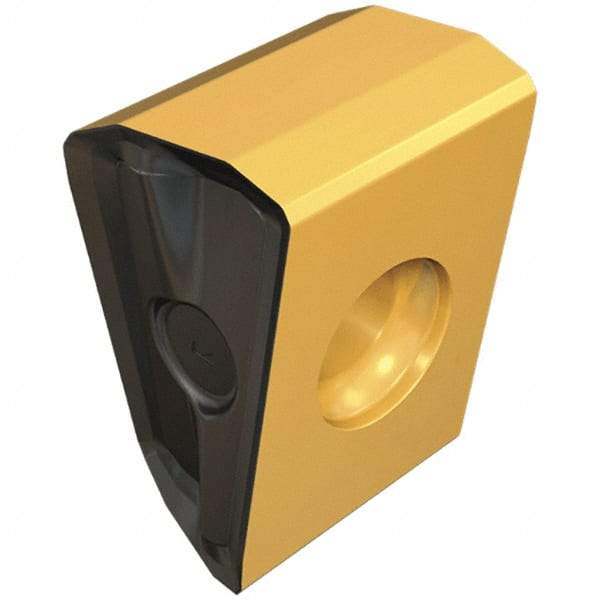

Iscar - T465 LNHT2212 R Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.78" Thick
Item #: 30730113
Brand: Iscar
Model #: 5606814
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | T465 LNHT |
| Insert Size | 2212 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Width (Decimal Inch) | 0.4720 |
| Length (Inch) | 1 |
| Length (Decimal Inch) | 1.0000 |
| Thickness (Decimal Inch) | 0.7800 |
| Relief Angle | 0.000 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Right Hand |
| Chipbreaker | R |
| Maximum Depth of Cut (mm) | 19.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| ISO Number | T465 LNHT2212-ZN-R |
