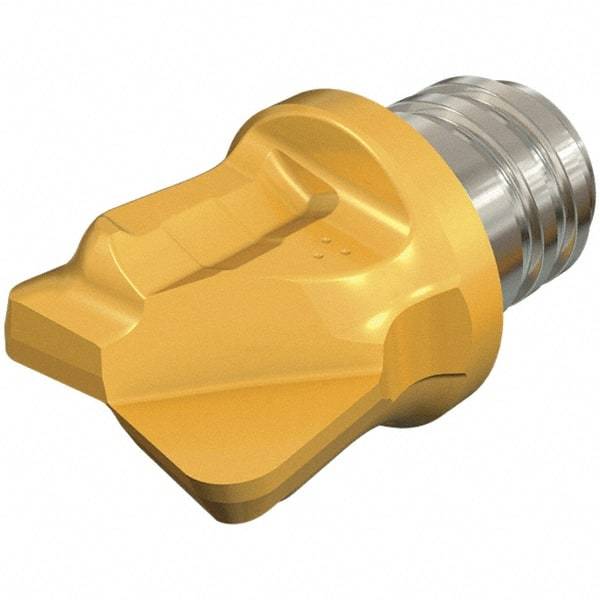

Iscar - MM HT Grade IC903 Carbide End Milling Tip Insert - AlTiN Finish, 2 Flutes, 11.99mm Cutting Diam, 5.51mm Depth of Cut, 11.1mm Extension, 0.118" Cnr Rad
Item #: 30730030
Brand: Iscar
Model #: 5606430
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
AlTiN is one of the most abrasive-resistant and hardest of the coatings. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM HT |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 11.99 |
| Cutting Diameter (Decimal Inch) | 0.4720 |
| Material Grade | Ultra Fine Grain |
| Manufacturer's Grade | IC903 |
| Depth of Cut (mm) | 5.51 |
| Depth of Cut (Decimal Inch) | 0.2170 |
| Number of Flutes | 2 |
| Coating | AlTiN |
| Milling Tip Full Description | Toroidal |
| Corner Radius (Decimal Inch) | 0.1180 |
| Coating Process | PVD |
| Extension From Holder (mm) | 11.10 |
| Extension From Holder (Decimal Inch) | 0.4370 |
| Thread Size | T08 |
| Style | MM HT120N06R3.0-2T08 |
