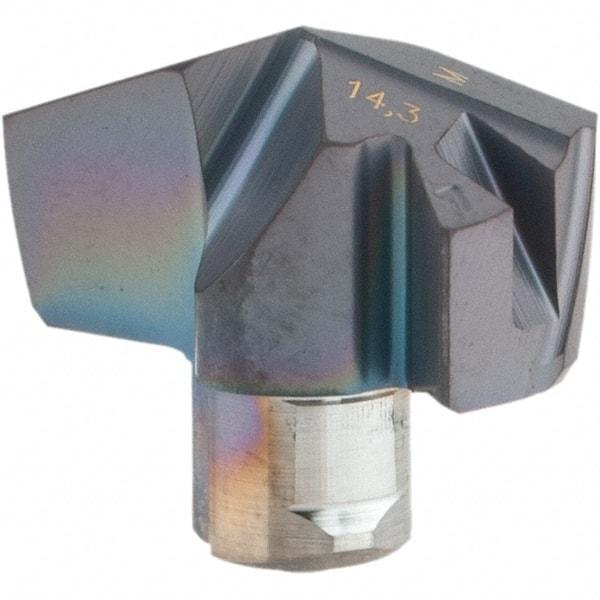

Iscar - Series ICM, 14.3mm Diam Grade IC907 140° Replaceable Drill Tip - Carbide, TiAlN/TiN Finish, 14 Seat Size
Item #: 30728661
Brand: Iscar
Model #: 5567145
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Diameter (mm) | 14.30 |
| Diameter (Decimal Inch) | 0.5630 |
| Included Angle | 140 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC907 |
| Series | ICM |
| Coating | TiAlN/TiN |
| Insert Seat Size | 14 |
| Through Coolant | NonThrough Coolant |
| Coating Process | PVD |
| Height (mm) | 8.15 |
| Height (Decimal Inch) | 0.3210 |
