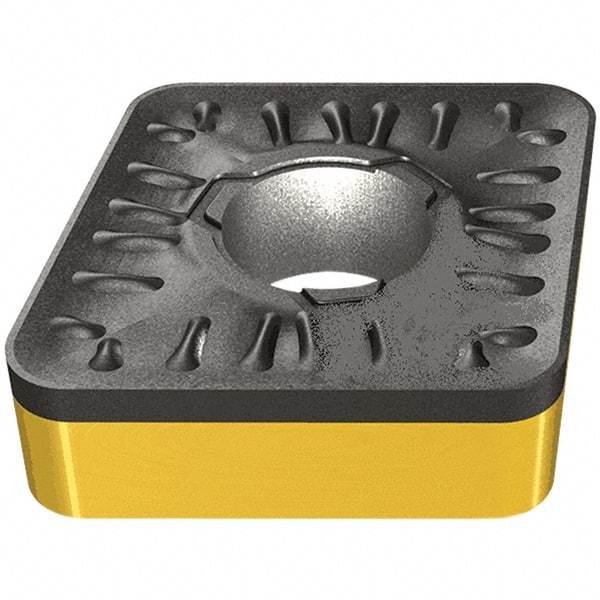

Iscar - CNMM543 R3P Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 3/64" Corner Radius
Item #: 30727960
Brand: Iscar
Model #: 5566798
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications | |
---|---|
Insert Style | CNMM |
Insert Size | 543 |
Material | Carbide |
Length (mm) | 16.13 |
Length (Decimal Inch) | 0.6350 |
Inscribed Circle (Decimal Inch) | 0.6250 |
Inscribed Circle (Inch) | 5/8 |
Thickness (Inch) | 1/4 |
Thickness (Decimal Inch) | 0.2500 |
Corner Radius (Inch) | 3/64 |
Corner Radius (Decimal Inch) | 0.0469 |
Manufacturer's Grade | IC8250 |
Coating | TiCN/Al2O3/TiN |
Chip Breaker | R3P |
Insert Length (Decimal Inch) | 0.6350 |
ISO Number | CNMM 543-R3P |
Relief Angle | 0 |
Coating Process | CVD |
Secondary Workpiece Material | None |
Included Angle | 80 |
Series | Isoturn |
Maximum Depth of Cut (mm) | 9.50 |
Maximum Depth of Cut (Decimal Inch) | 0.3740 |
Insert Holding Method | Pin & Clamp |
FullRadius | No |
Multi Use Application | Facing |
MultiUseTool | Yes |
Shape | Diamond |
