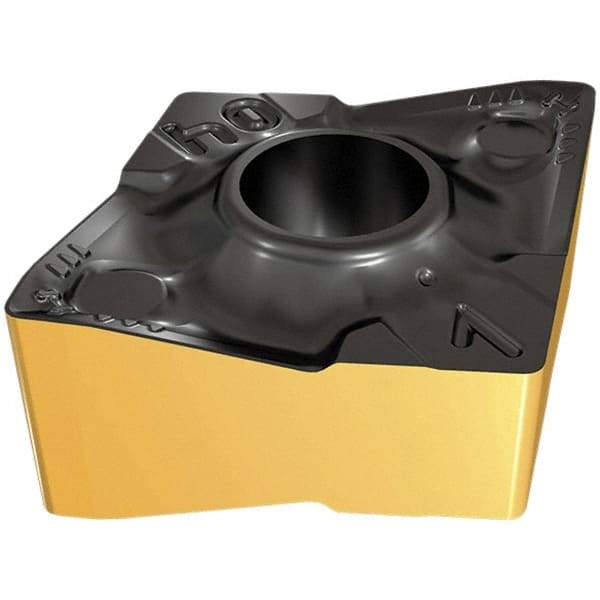

Iscar - CNMX341 M3PW Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 3/8" Inscr Circle, 0.174 Thick, 1/64" Corner Radius
Item #: 30727051
Brand: Iscar
Model #: 5510339
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMX |
| Insert Size | 341 |
| Material | Carbide |
| Length (mm) | 9.68 |
| Length (Decimal Inch) | 0.3810 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1740 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M3PW |
| Insert Length (Decimal Inch) | 0.3810 |
| ISO Number | CNMX 341-M3PW |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| Shape | Diamond |
