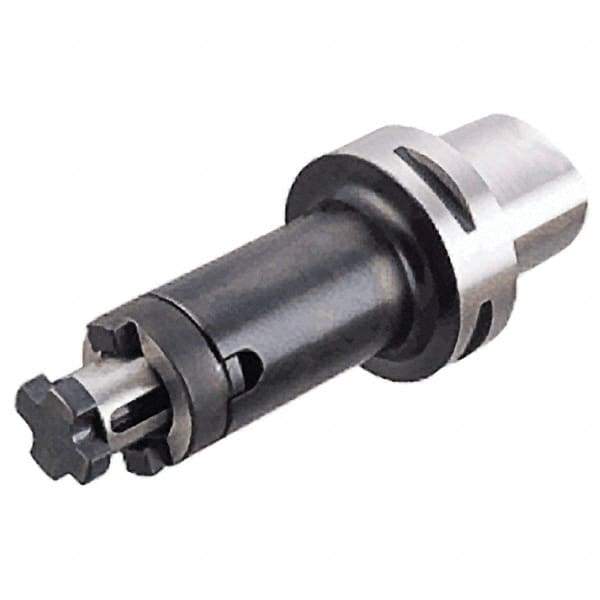

Iscar - C5 Modular Connection 22mm Pilot Diam Shell Mill Holder - 65mm Flange to Nose End Projection, 40mm Nose Diam
Item #: 30725758
Brand: Iscar
Model #: 4561466
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Pilot Diameter (mm) | 22.00 |
| Pilot Diameter (Decimal Inch) | 0.8661 |
| Projection Flange to Nose End (mm) | 65.00 |
| Projection Flange to Nose End (Decimal Inch) | 2.5591 |
| Through Coolant | No |
| Nose Diameter (mm) | 40.00 |
| Nose Diameter (Decimal Inch) | 1.5748 |
| TIR (Decimal Inch) | 0.0002 |
