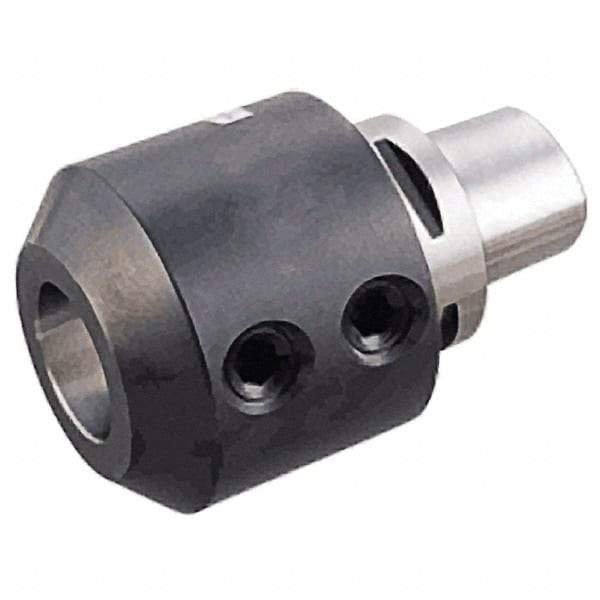

Iscar - C5 Modular Connection 6mm Hole End Mill Holder/Adapter - 63/64" Nose Diam, 50mm Projection, Through-Spindle Coolant
Item #: 30725527
Brand: Iscar
Model #: 4561441
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Hole Diameter (mm) | 6.00 |
| Nose Diameter (mm) | 25.00 |
| Nose Diameter (Inch) | 63/64 |
| Projection (mm) | 50.00 |
| Projection (Decimal Inch) | 1.9685 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 30.00 |
| Clamping Depth (Decimal Inch) | 1.1811 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Retention Knob Thread Size | M16 |
