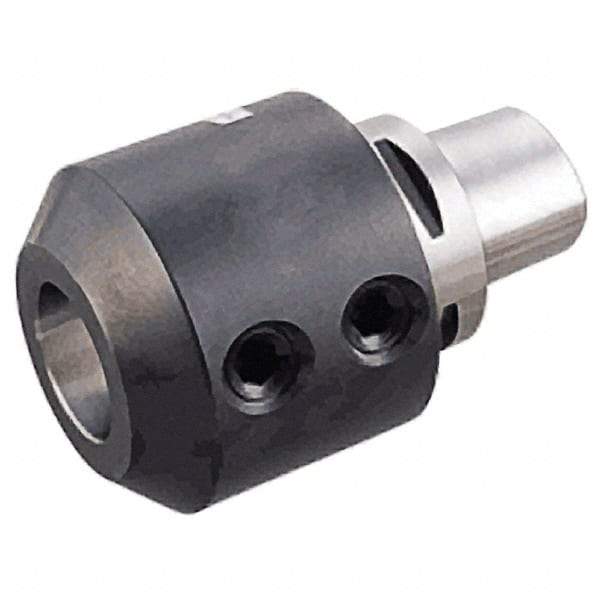

Iscar - C6 Modular Connection 40mm Hole End Mill Holder/Adapter - 90mm Nose Diam, 100mm Projection, Through-Spindle Coolant
Item #: 30724876
Brand: Iscar
Model #: 4561387
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Hole Diameter (mm) | 40.00 |
| Nose Diameter (mm) | 90.00 |
| Projection (mm) | 100.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 78.00 |
| Clamping Depth (Decimal Inch) | 3.0709 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Retention Knob Thread Size | M20 |
