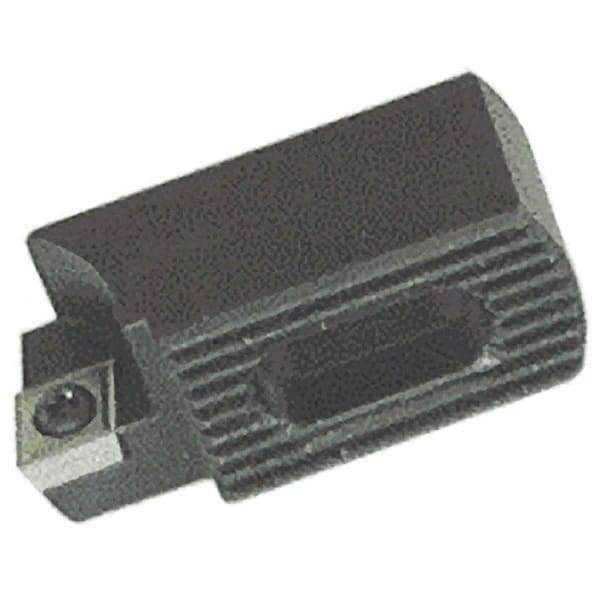

Iscar - Series Itsbore, Right Hand Cut, 69.01mm Min Bore Diam, Boring Cartridge - 21.08mm Back of Bar to Cutting Edge, CCGT 1204.., CCGT 43.., CCMT 1204.., CCMT 43.. Insert, 57mm OAL, 90° Lead Angle
Item #: 30721435
Brand: Iscar
Model #: 4551100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Itsbore |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 2.7170 |
| Minimum Bore Diameter (mm) | 69.01 |
| Insert Style | CCGT 1204..; CCGT 43..; CCMT 1204..; CCMT 43.. |
| Boring Head Compatibility | BHR MB50-50 |
| Overall Length (mm) | 57.00 |
| Overall Length (Decimal Inch) | 2.2440 |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (mm) | 21.08 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8300 |
| Complete Insert Compatibility | CCGT 120402-AS; CCGT 120404-AS; CCGT 120408-AF; CCGT 120408-AS; CCGT 430-AS; CCGT 431-AS; CCGT 432-AF; CCGT 432-AS; CCMT 120404-SM; CCMT 120408-14; CCMT 120408-SM; CCMT 120408-WG; CCMT 431-SM; CCMT 432-14; CCMT 432-SM; CCMT 432-WG |
