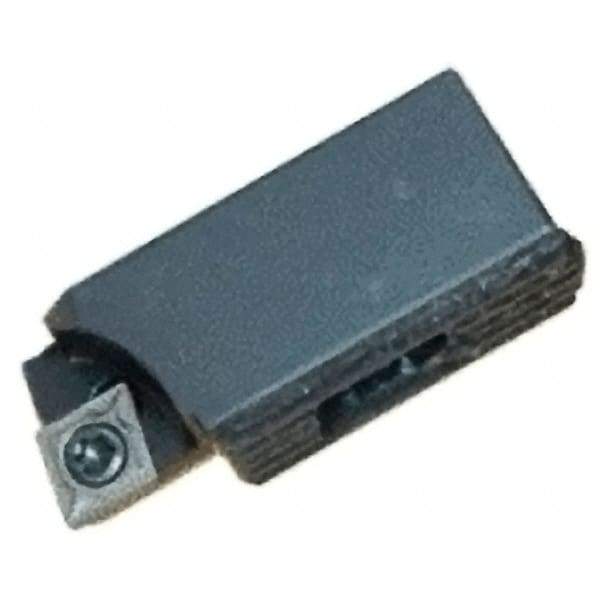

Iscar - Series Itsbore, 19.99mm Min Bore Diam, Boring Cartridge - 7.87mm Back of Bar to Cutting Edge, CC.. 0602.., CC.. 2.. Insert, 18.01mm OAL, 90° Lead Angle
Item #: 30721419
Brand: Iscar
Model #: 4551104
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Itsbore |
| Minimum Bore Diameter (Decimal Inch) | 0.7870 |
| Minimum Bore Diameter (mm) | 19.99 |
| Insert Style | CC.. 0602..; CC.. 2.. |
| Boring Head Compatibility | BHF MB16-16x34 |
| Overall Length (mm) | 18.01 |
| Overall Length (Decimal Inch) | 0.7090 |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (mm) | 7.87 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3100 |
| Complete Insert Compatibility | CCGT 060201-AS; CCGT 060202; CCGT 060202-AS; CCGT 060202-SM; CCGT 060202L; CCGT 060204; CCGT 060204-AS; CCGT 060204L; CCGT 2-.004-AS; CCGT 2-.004-SM; CCGT 2-0; CCGT 2-0-AS; CCGT 2-0-SM; CCGT 2-0L; CCGT 2-1; CCGT 2-1-AS; CCGT 2-1L; CCMT 060202-14 |
