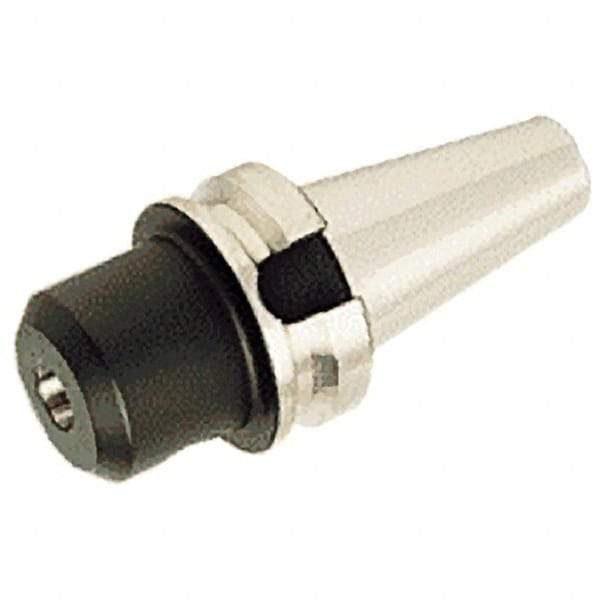

Iscar - BT50 Taper Shank 40mm Hole End Mill Holder/Adapter - 90mm Nose Diam, 115mm Projection, Through-Spindle Coolant
Item #: 30718167
Brand: Iscar
Model #: 4509854
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Hole Diameter (mm) | 40.00 |
| Nose Diameter (mm) | 90.00 |
| Projection (mm) | 115.00 |
| Projection (Decimal Inch) | 4.5276 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 78.50 |
| Clamping Depth (Decimal Inch) | 3.0906 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Retention Knob Thread Size | M24 |
