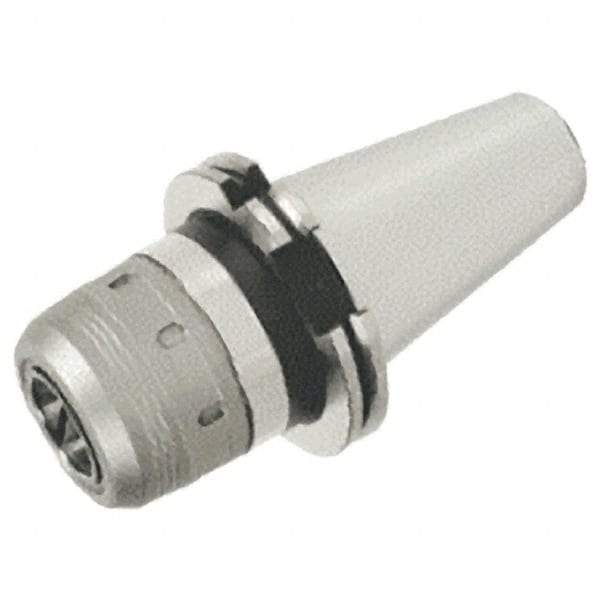

Iscar - DIN69871-50 Taper Shank, 32mm Hole Diam x 2.7165" Nose Diam Milling Chuck - 5.315" Projection, 0.0001" TIR, Through-Spindle & DIN Flange Coolant,
Item #: 30715320
Brand: Iscar
Model #: 4504924
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Taper Size | DIN69871-50 |
| Shank Type | Taper Shank |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Nose Diameter (mm) | 69.00 |
| Nose Diameter (Decimal Inch) | 2.7165 |
| Projection (mm) | 135.00 |
| Projection (Decimal Inch) | 5.3150 |
| Through Coolant | Yes |
| TIR (Decimal Inch) | 0.0001 |
| Coolant Type | Through-Spindle & DIN Flange |
