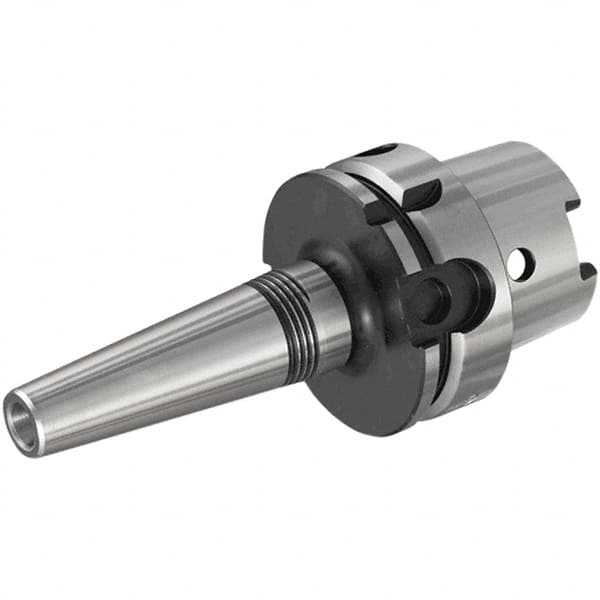

Iscar - 8mm Hole Diam, HSK63A Taper Shank Shrink Fit Tool Holder & Adapter - 76mm Projection, 14mm Nose Diam, 36mm Clamping Depth, 25,000 RPM, Through Coolant
Item #: 30714331
Brand: Iscar
Model #: 4504448
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Hole Diameter (Decimal Inch) | 0.3150 |
| Hole Diameter (mm) | 8.00 |
| Projection (mm) | 76.00 |
| Projection (Decimal Inch) | 2.9921 |
| Nose Diameter (mm) | 14.00 |
| Nose Diameter (Decimal Inch) | 0.5512 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 36.00 |
| Clamping Depth (Decimal Inch) | 1.4173 |
| Balanced to (RPM) | 25000 |
