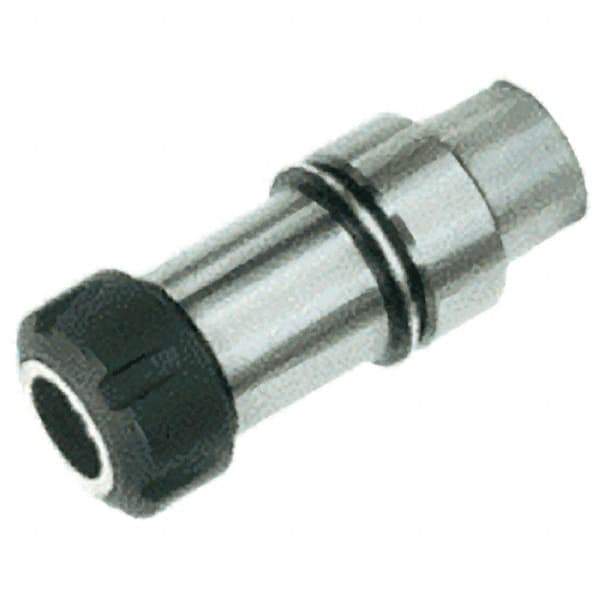

Iscar - 2mm to 20mm Capacity, 80mm Projection, HSK50E Hollow Taper, ER32 Collet Chuck - 0.0001" TIR, Through-Spindle
Item #: 30713176
Brand: Iscar
Model #: 4504115
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Hollow Taper |
| Taper Size | HSK50E |
| Projection (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1500 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0787 |
| Minimum Collet Capacity (mm) | 2.00 |
| Maximum Collet Capacity (mm) | 20.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.7874 |
| Nose Diameter (mm) | 50.00 |
| Nose Diameter (Decimal Inch) | 1.9685 |
| PSC Code | 5136 |
| Balanced to (RPM) | 25000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
