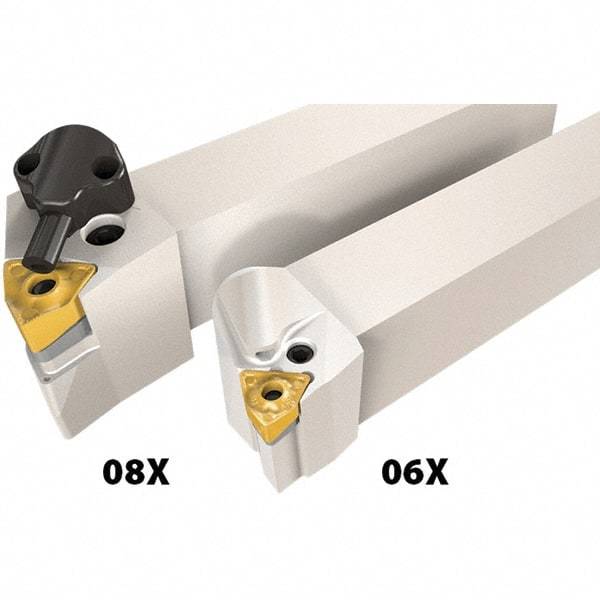

Iscar - PWLN, Left Hand Cut, 95° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative/Neutral Rake Indexable Turning Toolholder - 170mm OAL, WN..08.. Insert Compatibility, Series Heliturn LD, JetHPLine
Item #: 30710941
Brand: Iscar
Model #: 3603410
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PWLN |
| Rake | Negative; Neutral |
| Rake Angle | -6 (Axial); 0 (Radial) |
| Series | Heliturn LD; JetHPLine |
| Lead Angle | 95 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | WN..08.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Length (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.2992 |
