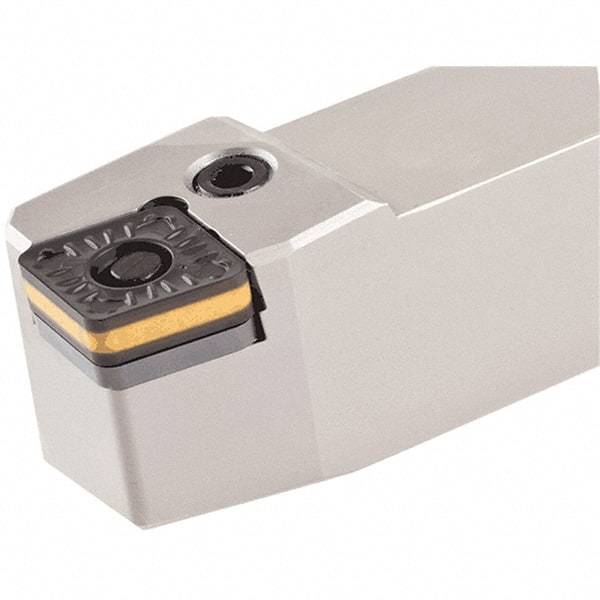

Iscar - PCBO, Right Hand Cut, 75° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, COMG 1906.. Insert Compatibility, Series DoveIQTurn
Item #: 30710511
Brand: Iscar
Model #: 3603296
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PCBO |
| Rake | Negative |
| Rake Angle | -6 |
| Series | DoveIQTurn |
| Lead Angle | 75 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | COMG 1906.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 28.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1024 |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.4961 |
