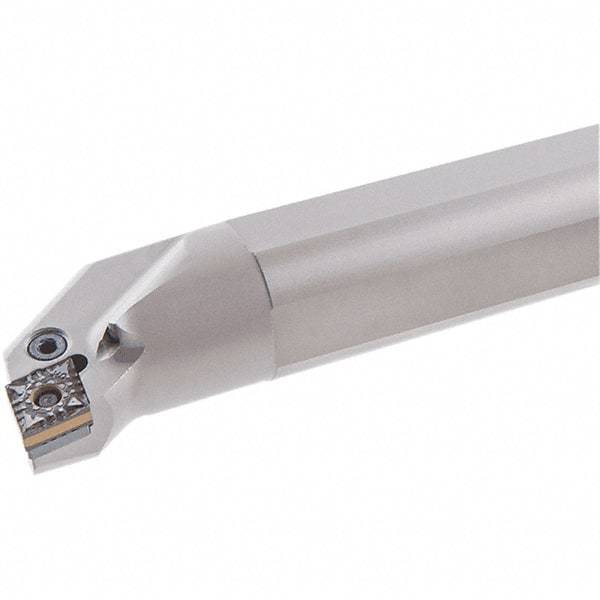

Iscar - 40mm Min Bore Diam, 300mm OAL, 32mm Shank Diam, A-PCLN Indexable Boring Bar - 50mm Max Bore Depth, CN.. 1204.. Insert, Pin Lock Assembly Holding Method
Item #: 30710362
Brand: Iscar
Model #: 3603139
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PCLN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Maximum Bore Depth (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | CN.. 1204.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin Lock Assembly |
| Rake | Negative |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Rake Angle | -12 (Radial), -6 (Axial) |
| Complete Insert Compatibility | CNGA 120404T; CNGA 120408E; CNGA 120408T; CNGA 120412T; CNGA 120416T; CNGG 120401-PP; CNGG 120402-PP; CNMA 120404; CNMA 120408; CNMA 120408F; CNMA 120412; CNMA 120416; CNMG 120404-GN; CNMG 120404-NF; CNMG 120404-PP; CNMG 120408-GN; CNMG 120408-NF |
