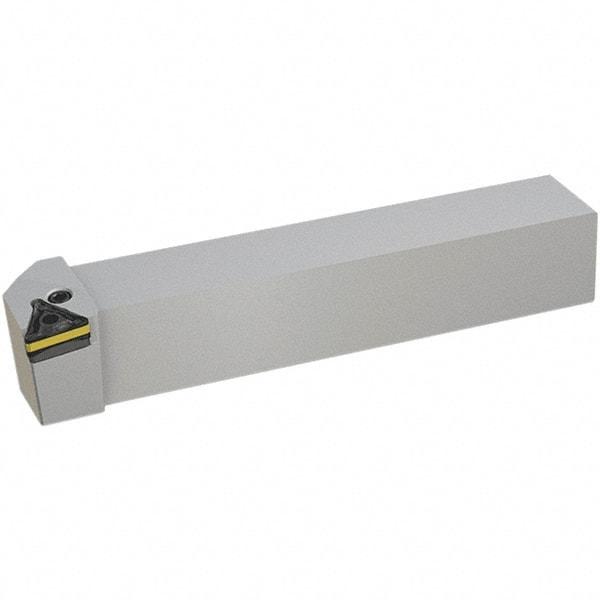

Iscar - PTGN, Right Hand Cut, 91° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, TN..160.. Insert Compatibility, Series Isoturn
Item #: 30710214
Brand: Iscar
Model #: 3603256
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PTGN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Isoturn |
| Lead Angle | 91 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | TN..160.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8661 |
