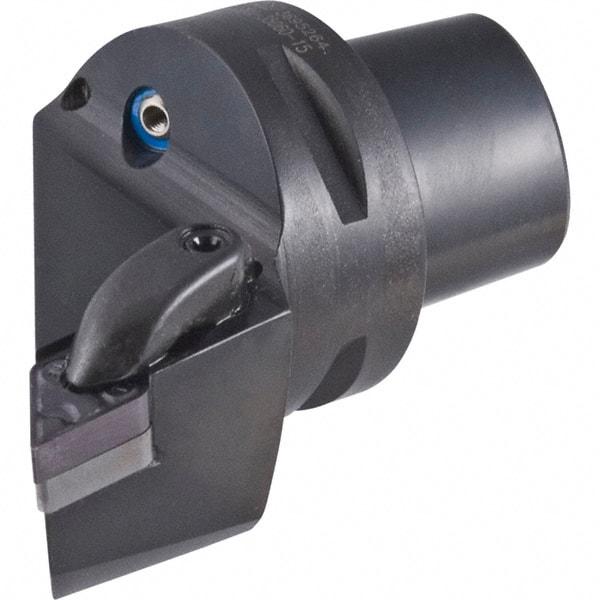

Iscar - Right Hand Cut, Size C4, DC.. 11T30.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 26.92mm Ctr to Cutting Edge, 50.01mm Head Length, Through Coolant, Series CAMFIX & Isoturn
Item #: 30710131
Brand: Iscar
Model #: 3606635
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CAMFIX; Isoturn |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 50.01 |
| Head Length/Projection (Decimal Inch) | 1.9690 |
| Insert Style | DC.. 11T30.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 26.92 |
| Center to Cutting Edge (Decimal Inch) | 1.0600 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | DCGT 11T301-AS; DCGT 11T302; DCGT 11T302-AS; DCGT 11T302-SM; DCGT 11T304; DCGT 11T304-AS; DCGT 11T304-SM; DCGT 11T308-AS; DCMT 11T302; DCMT 11T302-SM; DCMT 11T304; DCMT 11T304-14; DCMT 11T304-SM; DCMT 11T308; DCMT 11T308-14; DCMT 11T308-SM; DCMW 11T304 |
