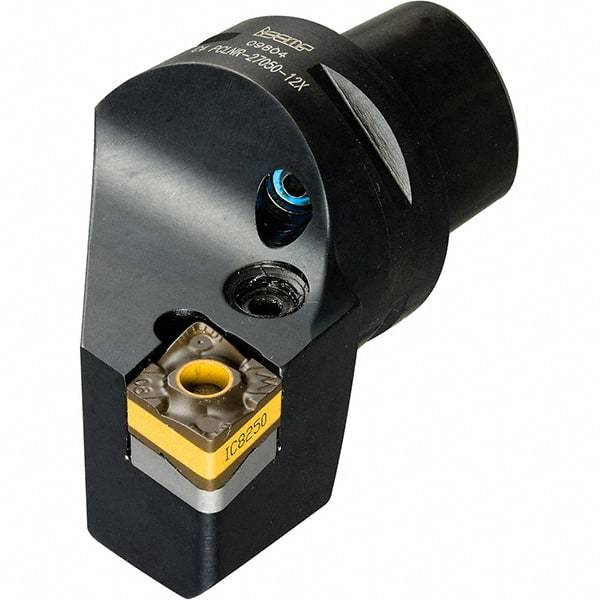

Iscar - Right Hand Cut, Size C4, WN.. 0606.. Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 26.92mm Ctr to Cutting Edge, 50.01mm Head Length, Through Coolant, Series CAMFIX & Heliturn
Item #: 30710057
Brand: Iscar
Model #: 3602917
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CAMFIX; Heliturn |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 50.01 |
| Head Length/Projection (Decimal Inch) | 1.9690 |
| Insert Style | WN.. 0606.. |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 26.92 |
| Center to Cutting Edge (Decimal Inch) | 1.0600 |
| Insert Holding Method | Screw or Clamp |
| Through Coolant | Through Coolant |
| Complete Insert Compatibility | WNMA 060404; WNMA 060408; WNMG 060402-NF; WNMG 060404-GN; WNMG 060404-NF; WNMG 060404-PP; WNMG 060408-GN; WNMG 060408-NF; WNMG 060408-PP; WNMG 060412-GN; WNMX 060604-M3PW; WNMX 060608-M3PW |
