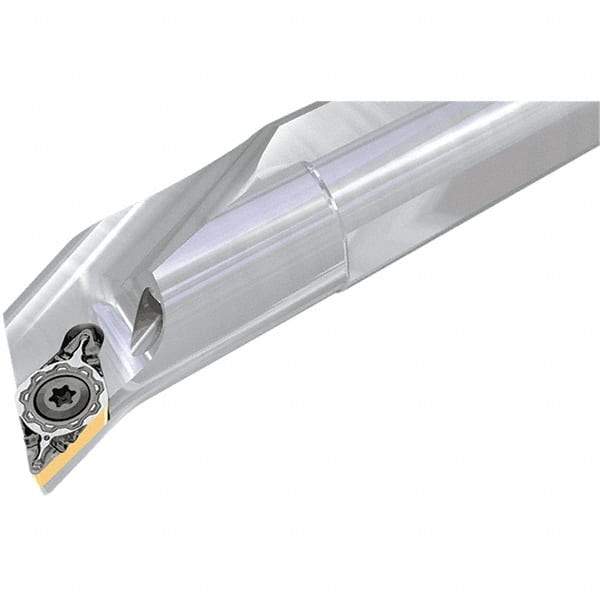

Iscar - PWXO, Left Hand Cut, 18.5° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, WOMG 1007-IQ Insert Compatibility, Series DoveIQTurn, FeedTurn
Item #: 30709976
Brand: Iscar
Model #: 3603044
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PWXO |
| Rake | Negative |
| Rake Angle | -6 |
| Series | DoveIQTurn; FeedTurn |
| Lead Angle | 18.5 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | WOMG 1007-IQ |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 36.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.4173 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2205 |
