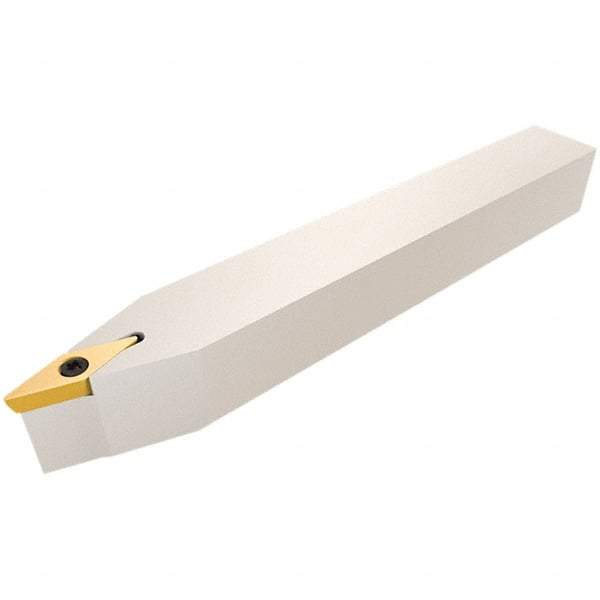

Iscar - SVVC, Neutral Cut, 72.5° Lead Angle, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 125mm OAL, VC..1103 Insert Compatibility, Series Isoturn
Item #: 30709950
Brand: Iscar
Model #: 3603088
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | SVVC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Isoturn |
| Lead Angle | 72.5 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | VC..1103 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 6.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.2480 |
