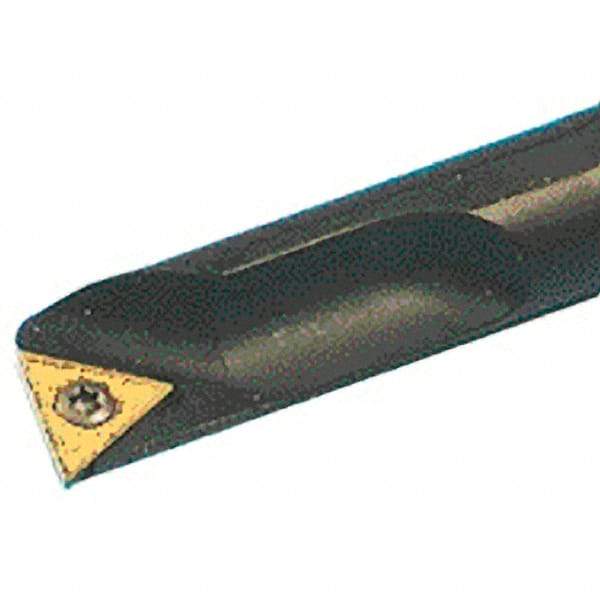

Iscar - 17mm Min Bore Diam, 180mm OAL, 16mm Shank Diam, S-STLP Indexable Boring Bar - 27mm Max Bore Depth, TP.. 1102.. Insert, Screw Holding Method
Item #: 30709919
Brand: Iscar
Model #: 3601060
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-STLP |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 17.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6693 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 27.00 |
| Maximum Bore Depth (Decimal Inch) | 1.0630 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | TP.. 1102.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral (Radial), Positive (Axial) |
| Lead Angle | 95 |
| Maximum Bore Diameter (mm) | 18.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.7087 |
| Center to Cutting Edge (mm) | 9.00 |
| Center to Cutting Edge (Decimal Inch) | 0.3543 |
| Rake Angle | 0 (Radial), 5 (Axial) |
| Complete Insert Compatibility | TPGB 110204; TPGB 110204-XL; TPGH 110204-L; TPGH 110204-XL; TPGH 110208-L; TPMT 110202; TPMT 110204; TPMT 110208 |
| Toolholder Material | Steel |
