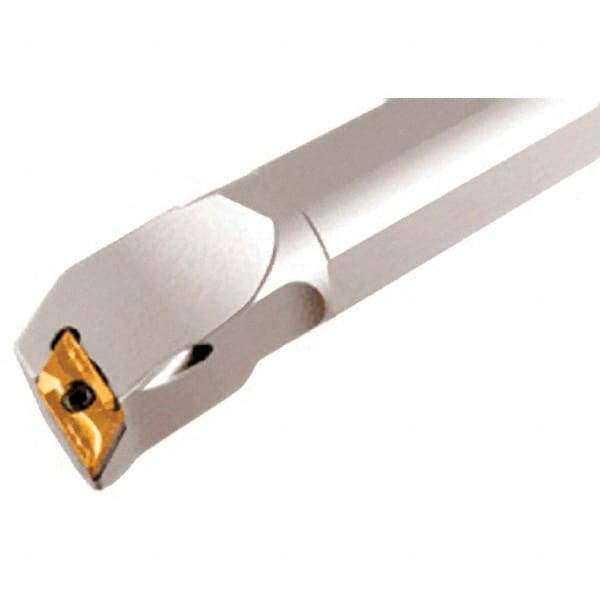

Iscar - 39mm Min Bore Diam, 350mm OAL, 32mm Shank Diam, A-SKUN Indexable Boring Bar - 54mm Max Bore Depth, KNMX 1604 Insert, Screw Holding Method
Item #: 30709828
Brand: Iscar
Model #: 3601383
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SKUN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 39.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5354 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 54.00 |
| Maximum Bore Depth (Decimal Inch) | 2.1260 |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | KNMX 1604 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Rake Angle | -10 (Radial), -6 (Axial) |
| Complete Insert Compatibility | KNMX 160405-LP; KNMX 160410-LP |
