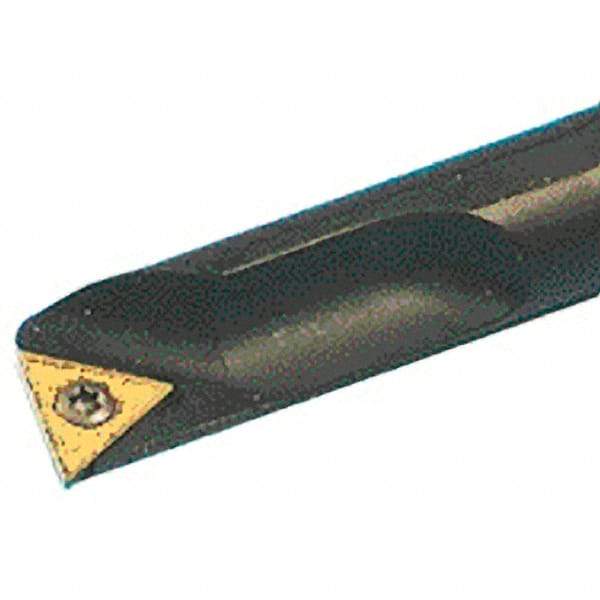

Iscar - 11mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, A-STLP Indexable Boring Bar - 18mm Max Bore Depth, TP.. 1102.. Insert, Screw Holding Method
Item #: 30709802
Brand: Iscar
Model #: 3601802
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STLP |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 11.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.4331 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 18.00 |
| Maximum Bore Depth (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | TP.. 1102.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Maximum Bore Diameter (mm) | 12.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.4724 |
| Center to Cutting Edge (mm) | 6.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2362 |
| Rake Angle | 0 (Radial), 3 (Axial) |
| Complete Insert Compatibility | TPGB 110204; TPGB 110204-XL; TPGH 110204-L; TPGH 110204-XL; TPGH 110208-L; TPMT 110202; TPMT 110204; TPMT 110208 |
| Toolholder Material | Steel |
