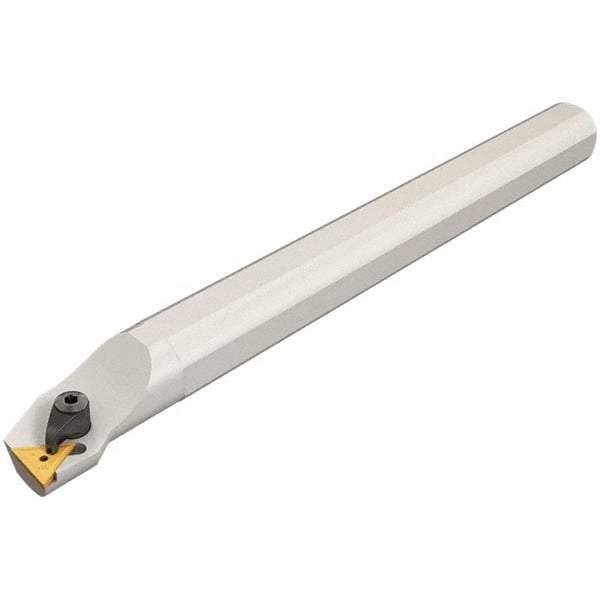

Iscar - 24mm Min Bore Diam, 200mm OAL, 20mm Shank Diam, S-CTFP Indexable Boring Bar - 46mm Max Bore Depth, TP.. 1603.. Insert, Clamp Holding Method
Item #: 30709794
Brand: Iscar
Model #: 3600158
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-CTFP |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 24.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9449 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 46.00 |
| Maximum Bore Depth (Decimal Inch) | 1.8110 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | TP.. 1603.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Neutral (Radial), Positive (Axial) |
| Lead Angle | 91 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Rake Angle | 0 (Radial), 4 (Axial) |
| Complete Insert Compatibility | TPGN 160304T; TPGN 160308T; TPMR 160304; TPMR 160304-PF; TPMR 160308; TPMR 160308-PF; TPMR 160312-PF |
