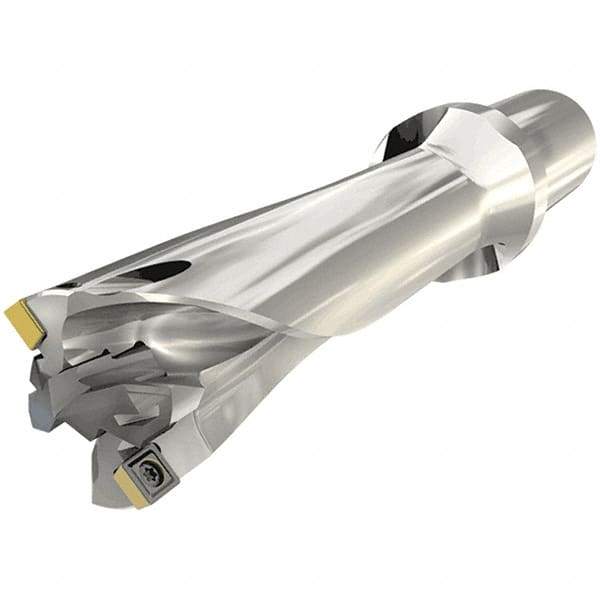

Iscar - 23.9 to 47mm Diam, 5xD, 235mm Max Depth, 40mm Shank Diam, 349.6mm OAL, Replaceable Tip Drill - ICP, SOGT-W Insert, MNC Toolholder, Series Combicham
Item #: 30709570
Brand: Iscar
Model #: 3202882
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Minimum Drill Diameter (mm) | 23.90 |
| Minimum Drill Diameter (Decimal Inch) | 0.9409 |
| Maximum Drill Diameter (mm) | 47.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.8504 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 9.2520 |
| Maximum Drill Depth (mm) | 235.00 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Style | ICP; SOGT-W |
| Toolholder Style | MNC |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 4.65 |
| Tip Length (Decimal Inch) | 0.1831 |
| Body Length (mm) | 281.60 |
| Body Length (Decimal Inch) | 11.0866 |
| Overall Length (mm) | 349.60 |
| Overall Length (Decimal Inch) | 13.7638 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
