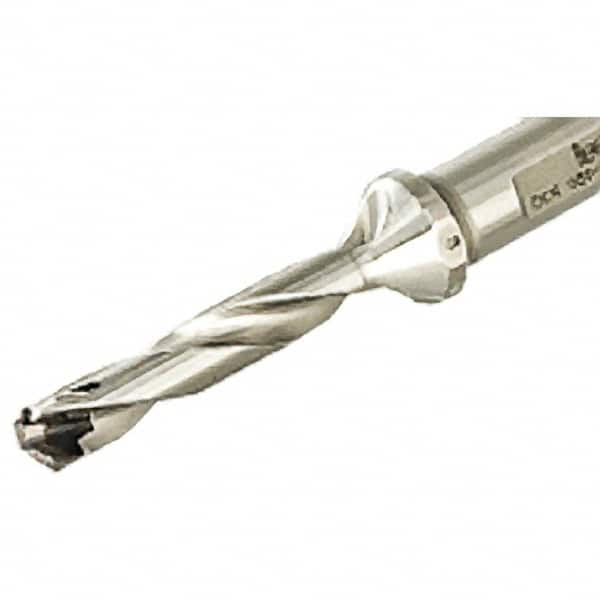

Iscar - 6.5mm to 6.9mm Diam, 3xD, 20mm Max Depth, 12mm Shank Diam, 78.8mm OAL, Replaceable-Tip Drill - ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 6.5 Seat Size, 30709554 Toolholder, Series SumoCham
Item #: 30709554
Brand: Iscar
Model #: 3202891
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 6.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.2559 |
| Maximum Drill Diameter (mm) | 6.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.2717 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (mm) | 20.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 6.5 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 33.80 |
| Body Length (Decimal Inch) | 1.3307 |
| Overall Length (mm) | 78.80 |
| Overall Length (Decimal Inch) | 3.1024 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
