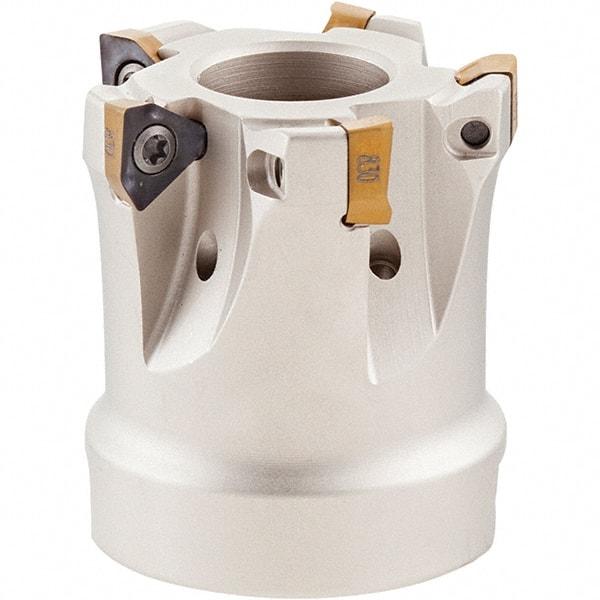

Iscar - 6 Inserts, 40mm Cut Diam, 16mm Arbor Diam, 5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 35mm High, HM390 TCKT 0703PCTR Insert Compatibility, Through Coolant, Series HeliIQMill
Item #: 30708556
Brand: Iscar
Model #: 3106712
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.6299 |
| Lead Angle | 0 |
| Overall Height (mm) | 35.00 |
| Overall Height (Decimal Inch) | 1.3780 |
| Insert Compatibility | HM390 TCKT 0703PCTR |
| Series | HeliIQMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | HM390 FTC-07 |
| Hub Diameter (mm) | 38.00 |
| Hub Diameter (Decimal Inch) | 1.4961 |
| Keyway Width (mm) | 8.40 |
| Keyway Width (Decimal Inch) | 0.3307 |
| Counterbore Diameter (Decimal Inch) | 0.5315 |
| Complete Insert Compatibility | HM390 TCKT 0703PCTR |
