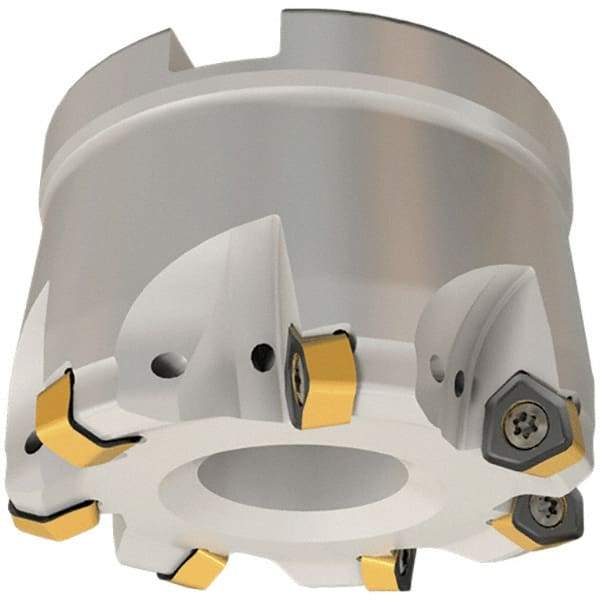

Iscar - 7 Inserts, 3.937" Cutter Diam, 0.0787" Max Depth of Cut, Indexable High-Feed Face Mill - 1-1/4" Arbor Hole Diam, 1.9685" High, FF FWX Toolholder, H600 WXCU 0.. Inserts, Series Helido
Item #: 30707566
Brand: Iscar
Model #: 3105254
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | Helido |
| Cutter Style | FF FWX |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | H600 WXCU 0.. |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Complete Insert Compatibility | H600 WXCU 040310HP; H600 WXCU 040310T; H600 WXCU 05T312HP; H600 WXCU 05T312T; H600 WXCU 080612HP |
