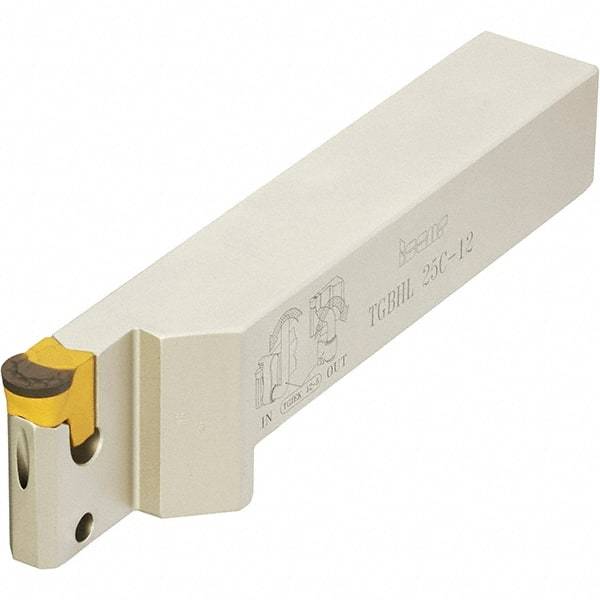

Iscar - External Thread, 0.7874" Max Depth of Cut, 140mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 25mm Shank Height x 25mm Shank Width, TAGB 1415Y Insert Style, TGBH Toolholder Style, Series Tang-Grip
Item #: 30706576
Brand: Iscar
Model #: 2801950
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Groove Width (Decimal Inch) | 0.5512 |
| Maximum Groove Width (mm) | 14.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 140.00 |
| Series | Tang-Grip |
| Toolholder Style | TGBH |
| Insert Compatibility | TAGB 1415Y |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7480 |
| Shank Length (Decimal Inch) | 5.5118 |
| Shank Length (mm) | 140.00 |
| Complete Insert Compatibility | TAGB 1415Y |
