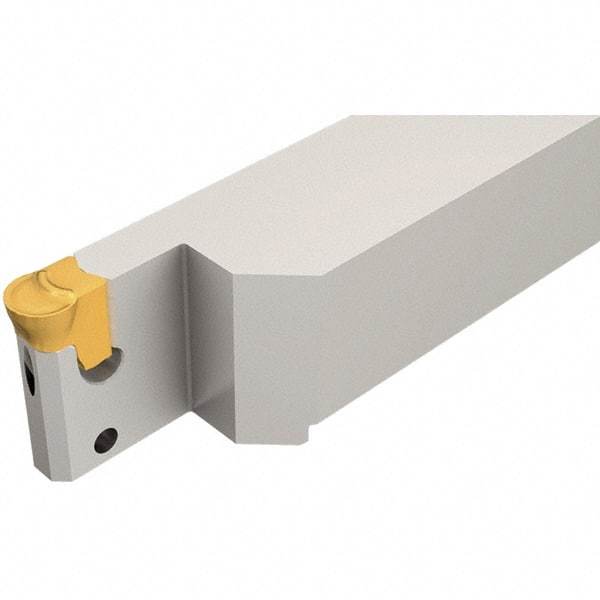

Iscar - External Thread, 1.5748" Max Depth of Cut, 170mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 40mm Shank Height x 40mm Shank Width, TAGB 1415Y Insert Style, TGBH Toolholder Style, Series Tang-Grip
Item #: 30706527
Brand: Iscar
Model #: 2801954
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Maximum Groove Width (Decimal Inch) | 0.5512 |
| Maximum Groove Width (mm) | 14.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Overall Length (mm) | 170.00 |
| Series | Tang-Grip |
| Toolholder Style | TGBH |
| Insert Compatibility | TAGB 1415Y |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3386 |
| Shank Length (Decimal Inch) | 6.6929 |
| Shank Length (mm) | 170.00 |
| Complete Insert Compatibility | TAGB 1415Y |
