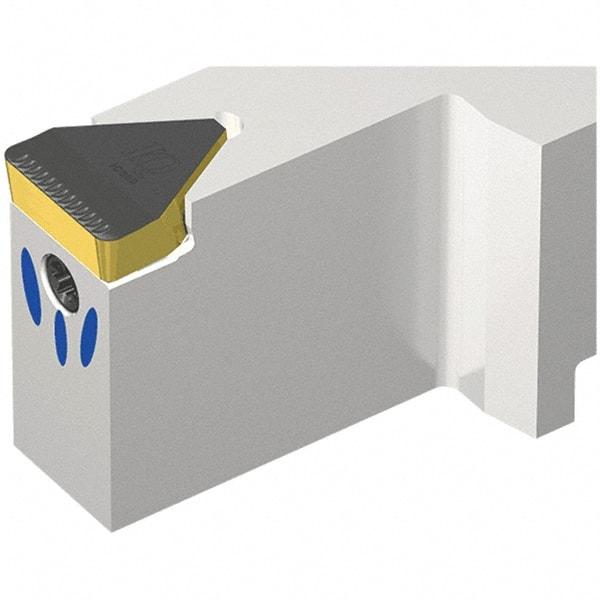

Iscar - THD, External, Right Hand, 20mm Max Depth of Cut, 12mm Max Groove Width, Indexable Grooving Tool Holder - TIGER 1212Y-IQ Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 170mm OAL, Through Coolant
Item #: 30706444
Brand: Iscar
Model #: 2801979
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Groove Width (mm) | 12.00 |
| Maximum Groove Width (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | THD |
| Insert Compatibility | TIGER 1212Y-IQ |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | DoveIQGrip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Head Height (Decimal Inch) | 1.2992 |
| Head Height (mm) | 33.00 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Shank Length (mm) | 140.00 |
| Shank Length (Decimal Inch) | 5.5118 |
| Complete Insert Compatibility | TIGER 1212Y-IQ |
