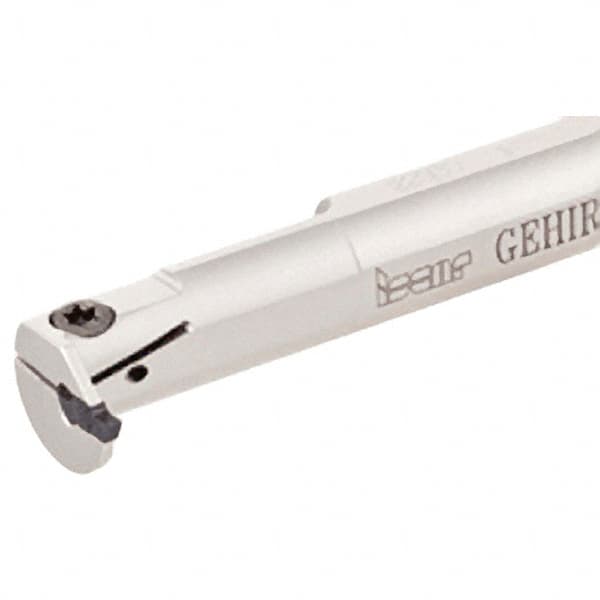

Iscar - 11.5mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, GEHI Indexable Boring Bar - 25mm Max Bore Depth, GEPI Insert, Screw Holding Method
Item #: 30706360
Brand: Iscar
Model #: 2801755
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHI |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 11.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.4528 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 25.00 |
| Maximum Bore Depth (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | GEPI |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading; Turning |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 8.80 |
| Center to Cutting Edge (Decimal Inch) | 0.3465 |
| Coolant Hole Diameter (mm) | 3.50 |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Complete Insert Compatibility | GEPI 2.00-1.00; GEPI 2.47-0.20; GEPI 2.50-0.20; GEPI 2.50-0.10; GEPI 2.70-0.20; GEPI 3.00-0.20 |
