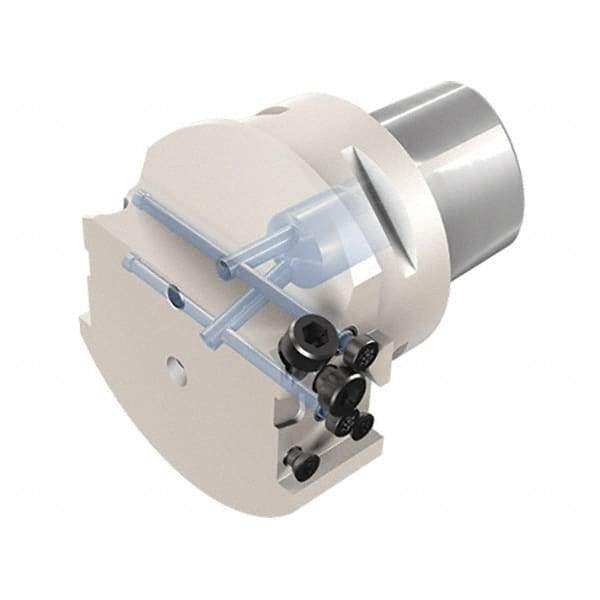

Iscar - MAH, External, Right Hand, 0.236" Max Groove Width, Indexable Grooving Tool Holder - 1" Shank Height, 1" Shank Width, 5" OAL, Through Coolant
Item #: 30706352
Brand: Iscar
Model #: 2801872
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Overall Length (Decimal Inch) | 5.0000 |
| Toolholder Style | MAH |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Modular Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8100 |
| Head Height (Decimal Inch) | 1.2000 |
